Overvoltage Indicator (CB14976E)

Details
Written by: Newton C. Braga

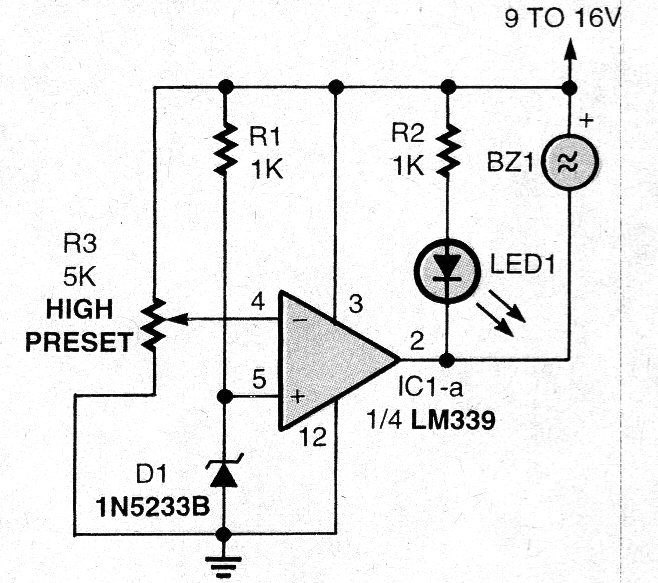

When the voltage in the circuit exceeds the value set in the trimpot, the LED goes off and, if a low current buzzer is used, it rings. The circuit is from American documentation from 1999.
