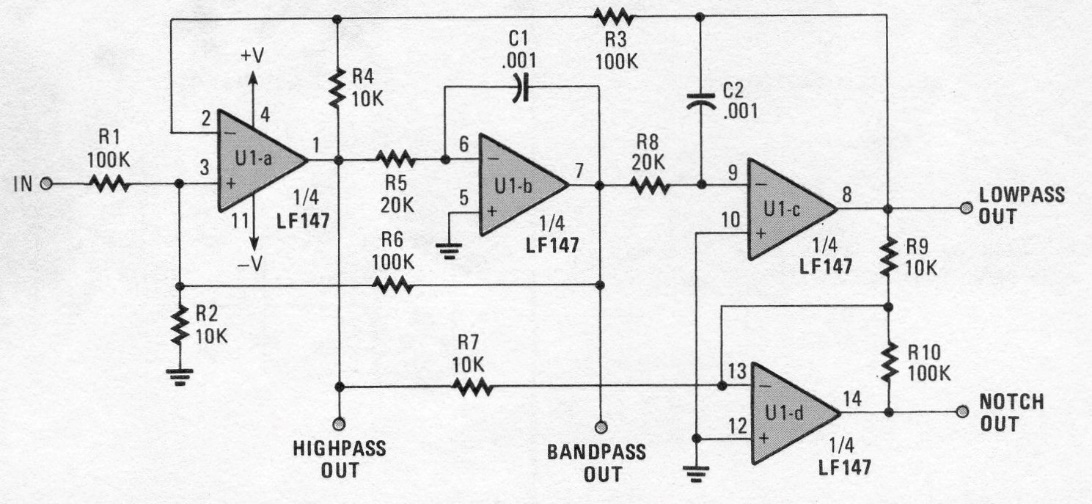

We found this circuit in an American documentation from the 90s. The circuit combines functions of 4 different filters, whose frequency is determined by capacitors C1 and C2. The circuit must be powered by a symmetrical source and equivalent operational can be employed.
