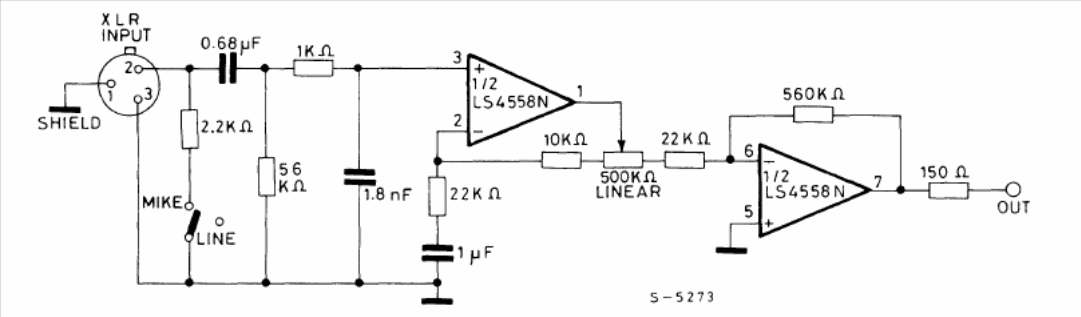

The integrated circuit used in this application is a double 741 from SGS. The supply must be symmetrical, and the gain can be adjusted in the logarithmic mode from 0 to 60 dB. The cables must be shielded for both the output and the input.
