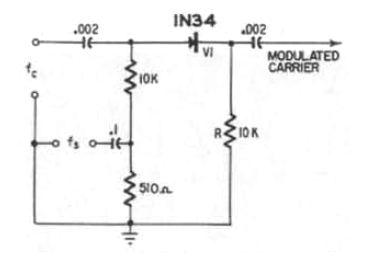

With this circuit it is possible to modulate a small signal in amplitude using a common germanium diode. The amplitude of the modulated signal must not exceed a few volts as well as the modulator signal. Equivalent diode can be used.
Germanium Diode Modulator (CB15412E)
- Details
- Written by: Newton C. Braga
