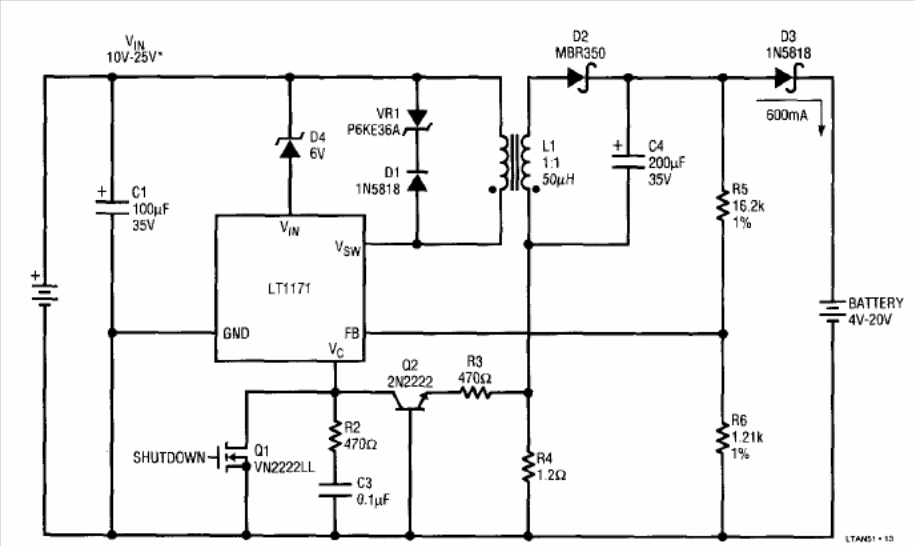

Battery Charger LT1171 (CB14608E)

Details
Written by: Newton C. Braga



This constant current charger from 1997 Linear Technology Applications uses common components at the time. The transformer is the critical component, being designed according to the load voltage.
