FET Input Operational Stage (CB14620E)

Details
Written by: Newton C. Braga

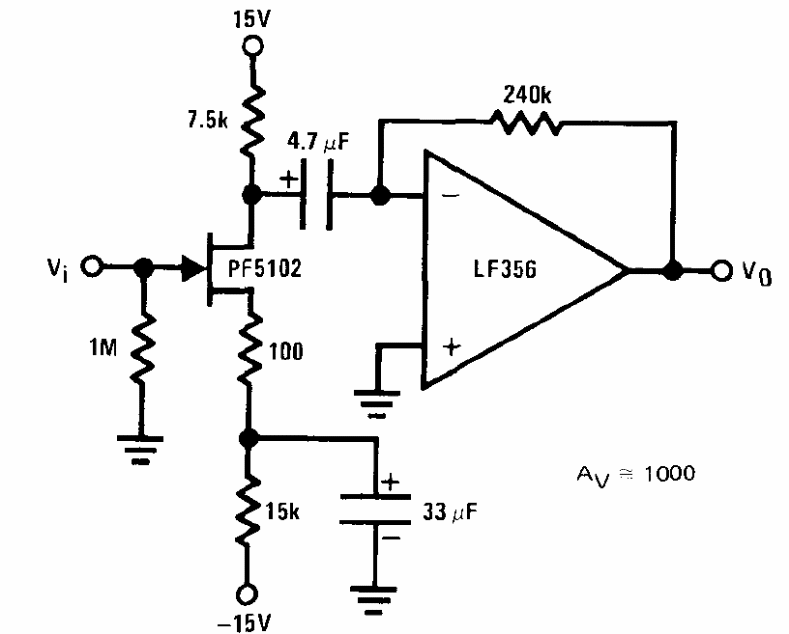

The presented circuit was found in the National Semiconductor FET Databook. The setting applies to other operational amplifiers and other FETs. The power supply must be symmetrical.
