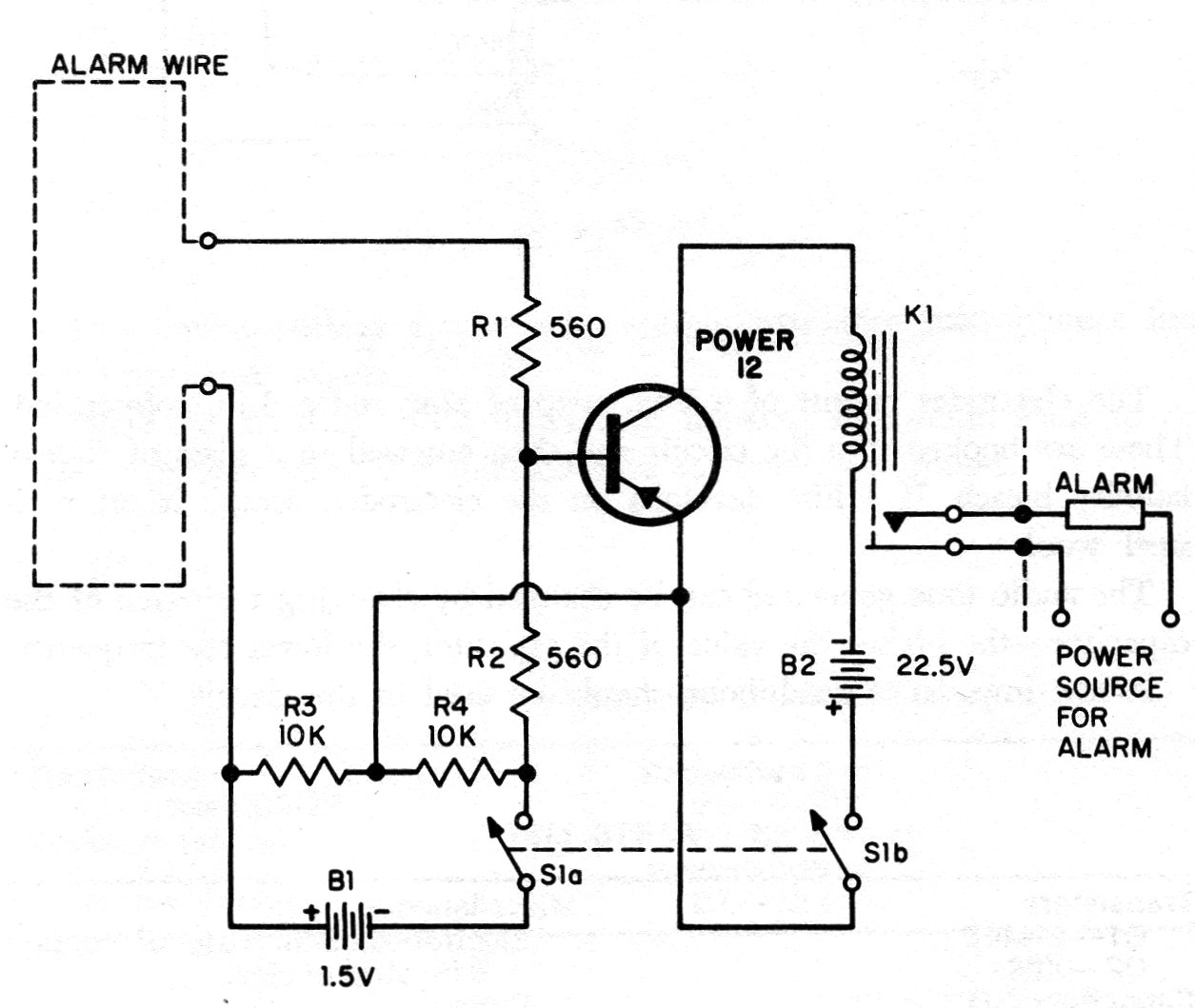

The circuit presented was found in a 1964 documentation. The relay can be 6 or 12 V depending on the voltage used in the supply, since the original voltage of 22.5 V is not common. The transistor can be a BD136 and the relay coil current is a maximum of 100 mA.
