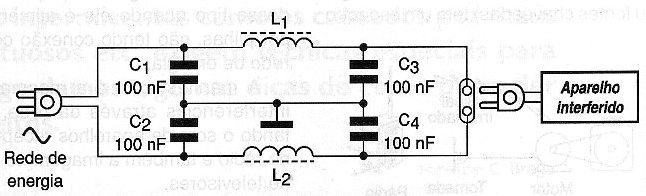

A more efficient filter is the one that diverts the signal to the ground and not only short it, as in the previous case. This filter is shown in figure 5 and makes use of 4 capacitors instead of just two. The capacitors and coils are like to those indicated for the previous filter (CB15427E). The earthing must be made to an appropriate ground bar.
