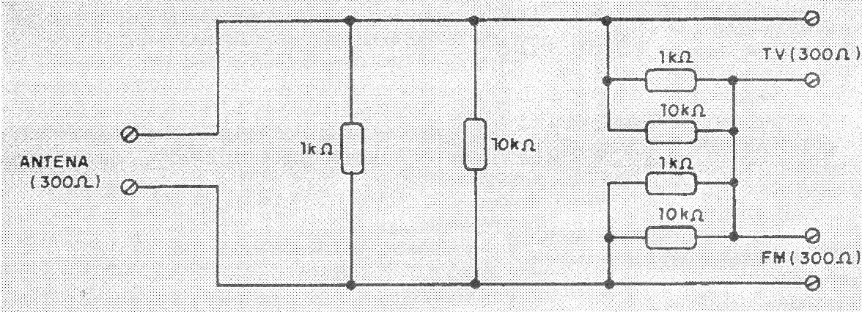

With this circuit it is possible to use the same antenna to receive signals from conventional analog TV for the VHF band and FM stations. The circuit is for a 300 ohms parallel line and the resistors are 1/8 W. The assembly must be made in a metal box to serve as a shield.
