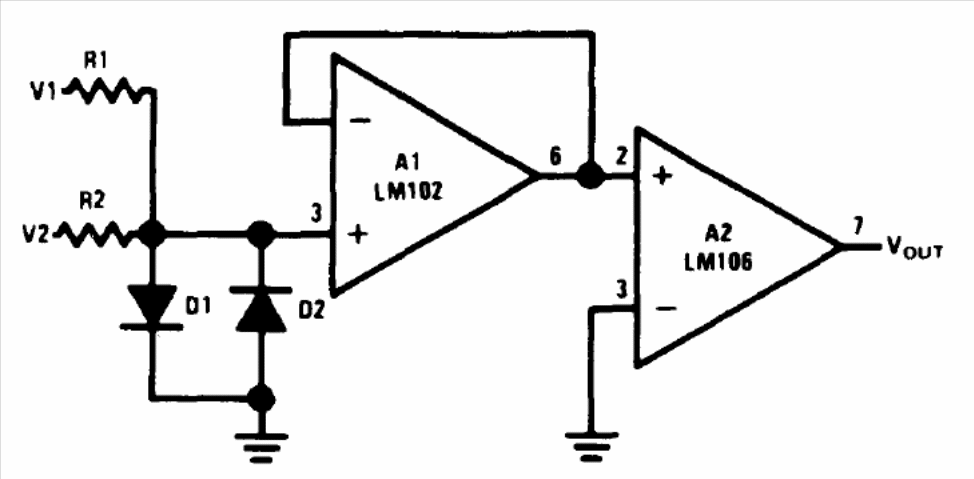

In the figure we have the way to implement a comparator for voltages of opposite polarities. The circuit can be designed with more modern operators, as it was found in the Linear Applications Handbook of the National Semiconductor of 1994.
