Automatic Voltage Selector (CB15346E)

Details
Written by: Newton C. Braga

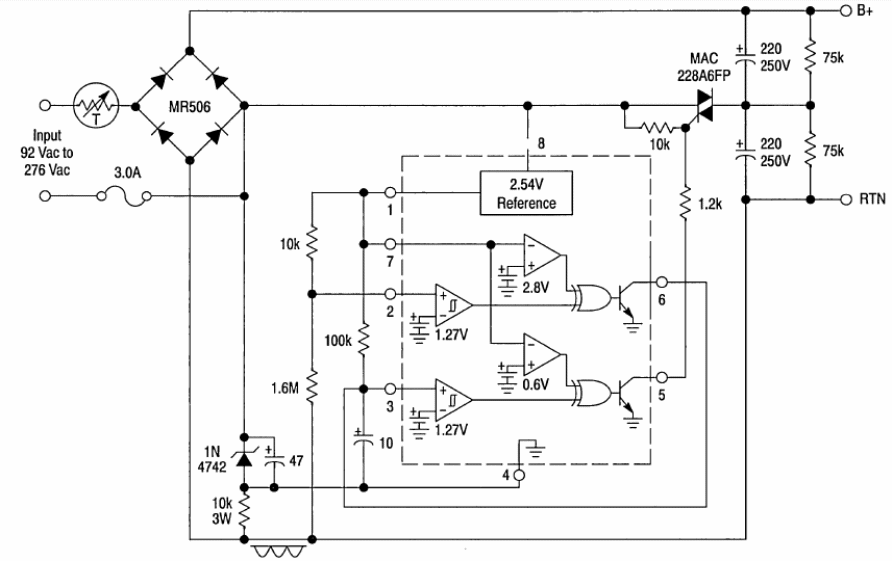

This circuit was found in Motorola's Linear Interface ICs of 1993. The integrated circuit used is not common and the load current depends on the Triac.
