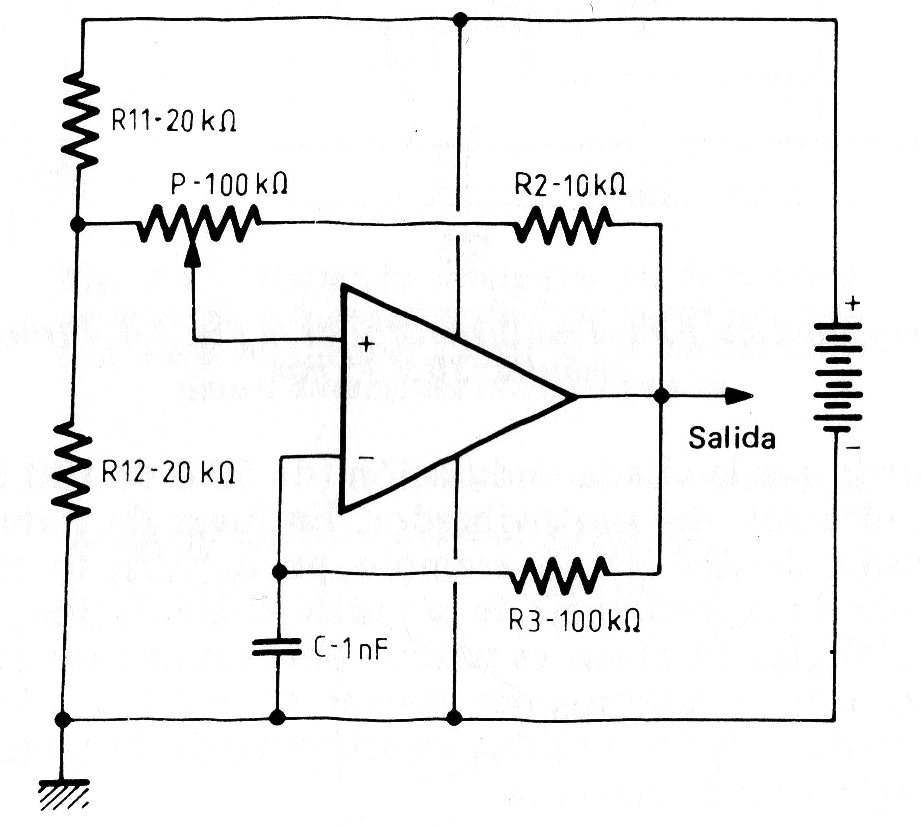

This circuit can generate signals from 1 Hz to more than 100 kHz with a range determined by the potentiometer and the capacitor. We found this circuit in a 1982 documentation.
| Clique na imagem para ampliar |
Operational Astable Variable Without Symmetric Source (CB14829E)
- Details
- Written by: Newton C. Braga
