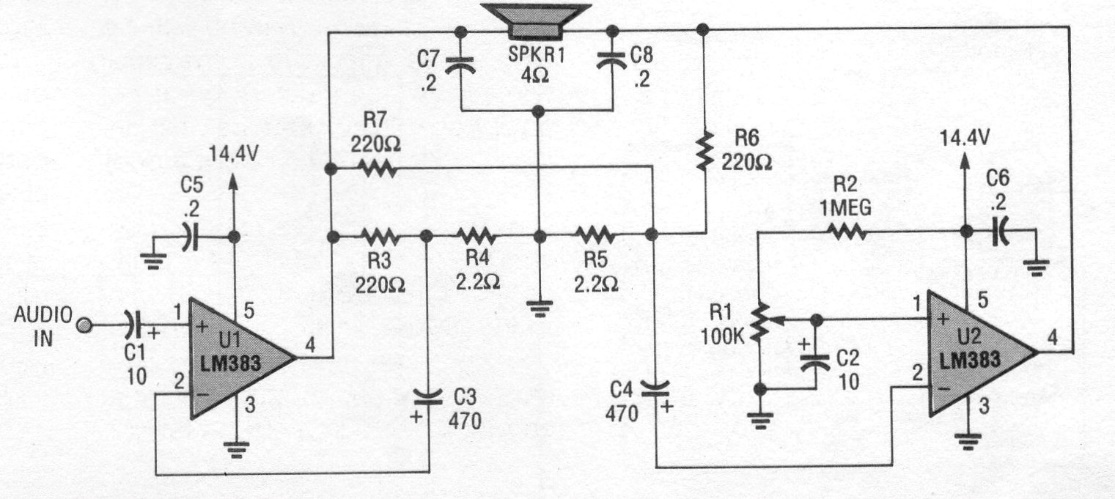

We found this circuit in an American technical documentation from the 1980s. The integrated circuit used is not common today. The circuit can be used as a bass booster in car stereo systems or in fixed applications with a power source of at least 3 A.
| Clique na imagem para ampliar |
