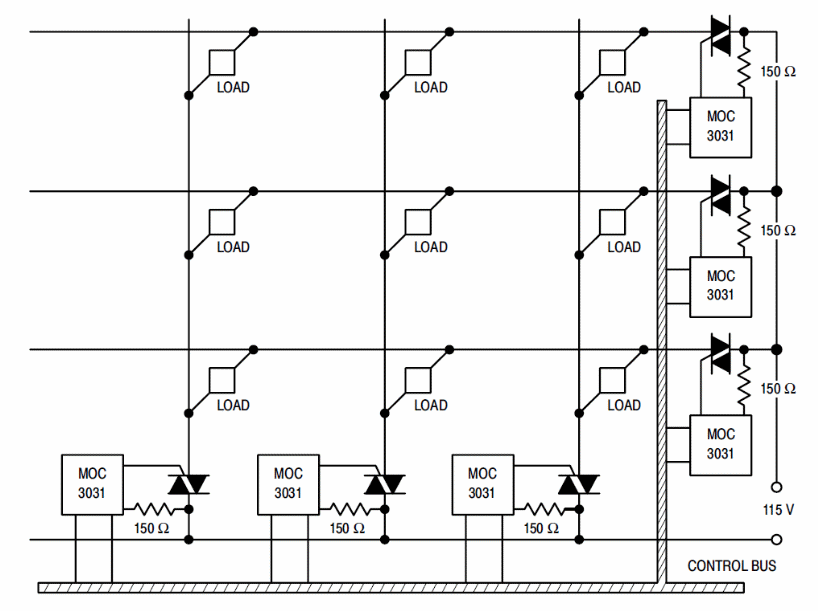

This circuit shows how it is possible to control 9 loads with only 6 Triacs using the matrix switching and the bus of a microcontroller. The loads depend on the triacs used. The circuit is from the On Semiconductor thyristor manual.
| Clique na imagem para ampliar |
