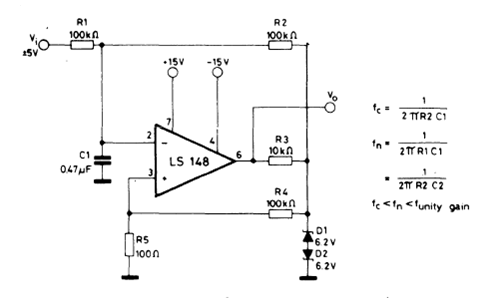

This pulse width modulator is from the SGS Integrated Circuits Manual 1982, the operational can be replaced by an equivalent such as 741. Formulas for determining the components and characteristics of the circuit are given next to the diagram.
Pulse Width Modulator LS148 (CB15194E)
- Details
- Written by: Newton C. Braga
