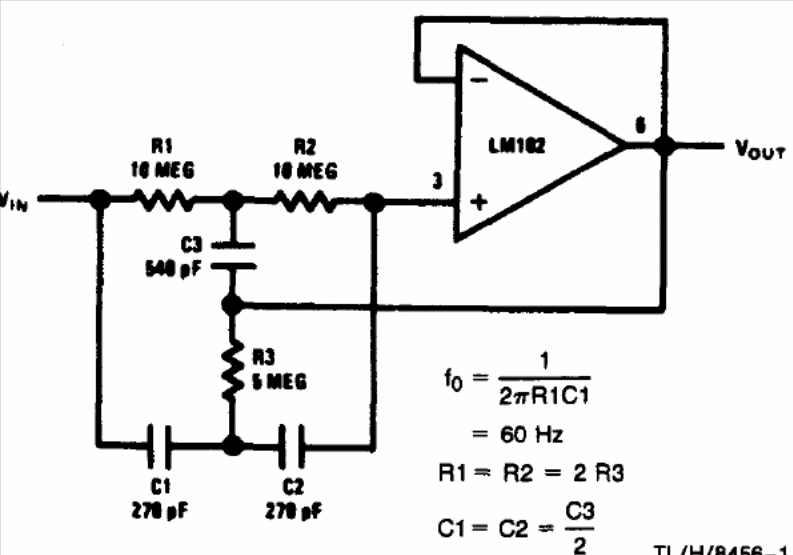

The presented circuit uses an uncommon operational amplifier but can be implemented with a more modern equivalent. The circuit is from the Linear Applications Handbook of National Semiconductor and must use a symmetrical source. The calculation of components for other frequencies can be done from the formulas next to the diagram.
