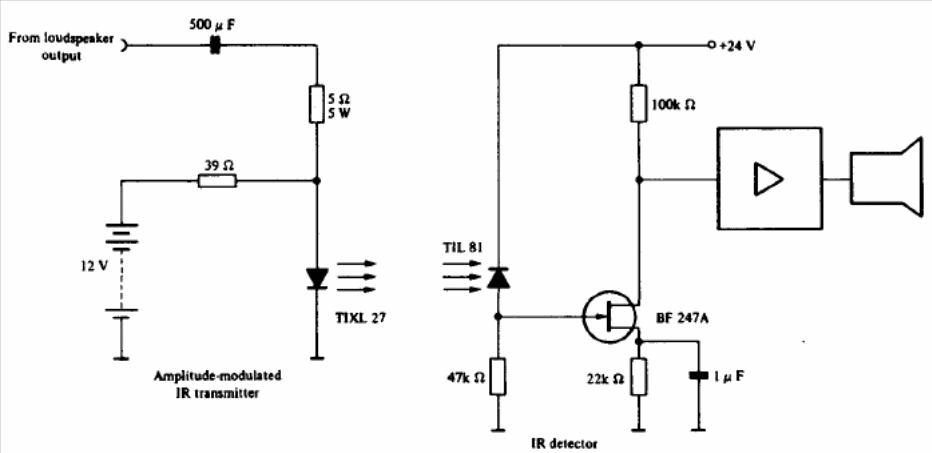

In the figure we have the transmitter and the receiver for an optical audio link via infrared. The amplifier can be of any type and optical features like lenses determines the range. The circuit is from a Texas Instruments opto-electronics manual.
