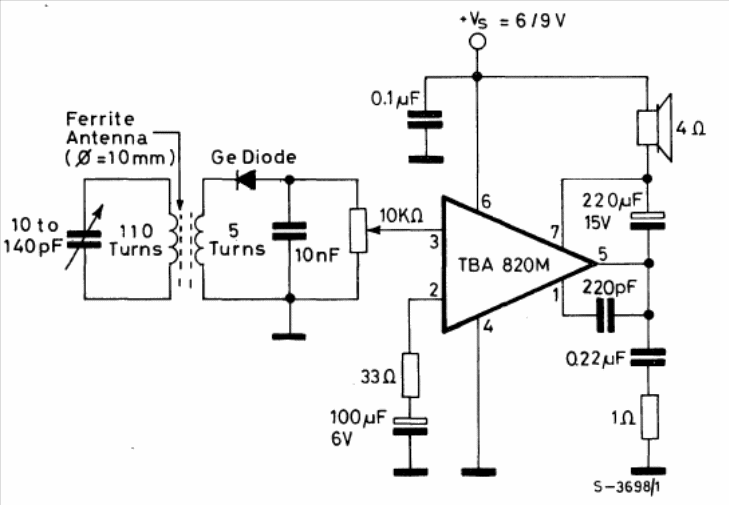

This low-cost MW receiver is from the SGS linear integrated circuit manual. The coil wire can be from 26 to 30 and the variable capacitor can be obtained from an unused MW radio. External antenna can be used for greater sensitivity and the diode can be 1N34.
