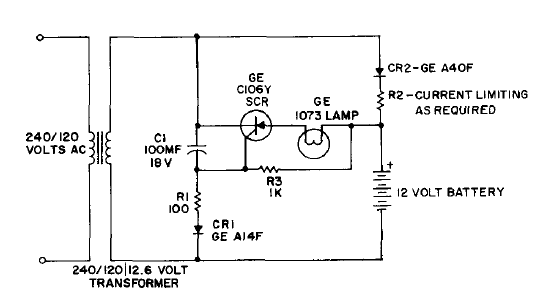

We have already presented this configuration obtained from other sources. This is from GE's 1977 semiconductor manual. The SCR can be the TIC106 and the lamp according to the battery and the desired lighting.
Emergency Light C106 (CB14715E)
- Details
- Written by: Newton C. Braga
