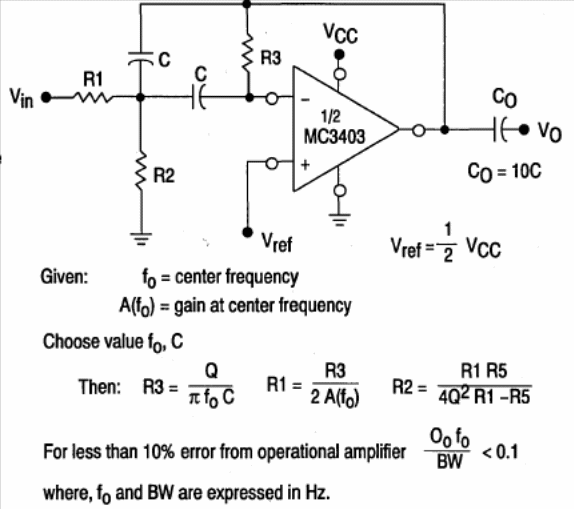

The operational amplifier used in this configuration is uncommon today, but more modern types can be used. The formulas next to the diagram allow you to calculate the components. The circuit is from Motorola's 1993 Linear Interface ICs.
Multiple Feedback Band Pass Filter MC3403 (CB15266E)
- Details
- Written by: Newton C. Braga
