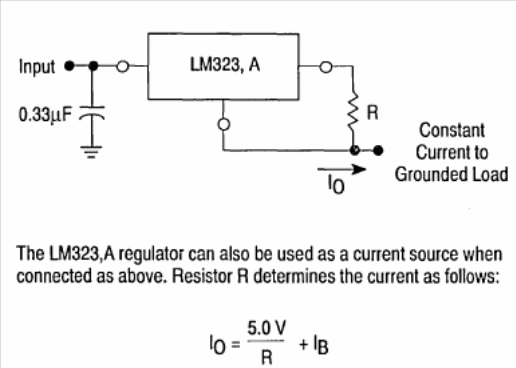

This circuit was obtained in the Motorola Linear Interface ICs of 1993. The current is determined by the formula next to the diagram. The integrated circuit must be mounted on a heat radiator. IB is 3.5 mA.
Current Regulator 3 A LM323 (CB15318E)
- Details
- Written by: Newton C. Braga
