The LM1723 is the version of the well-known Motorola 723. The circuit is from Motorola's Linear Interface ICs from 1993. The transistor admits equivalents, with a PNP in the diagram is the NPN 2N3055.
| Clique na imagem para ampliar |

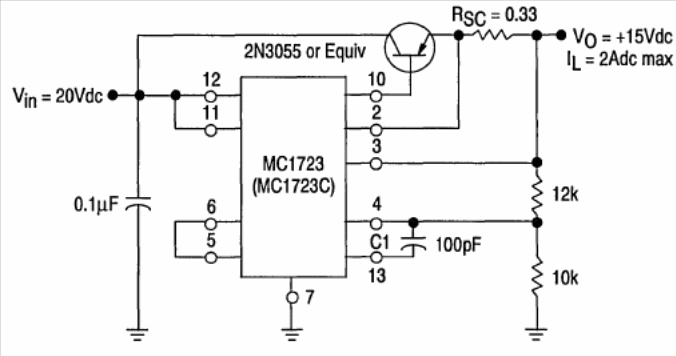

15 V x 2A regulator MC1723 (CB15329E)
