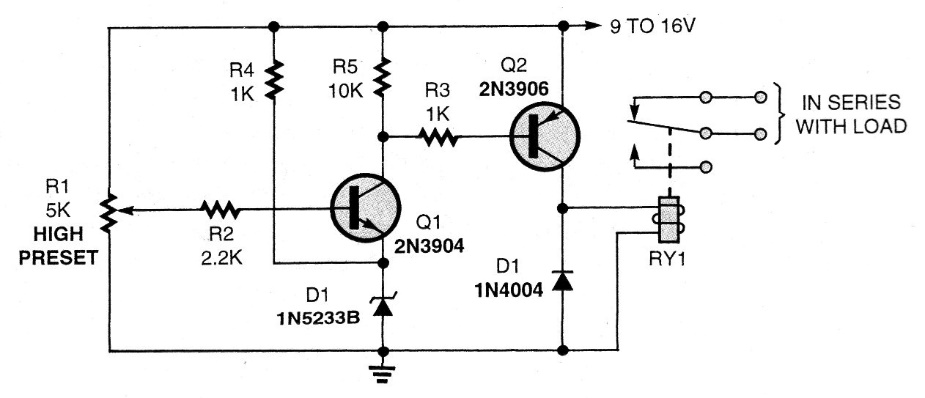

This circuit activates a relay when the supply voltage drops below the value set in the trimpot. The transistors can be the BC548 and BC558 and the 6 V relay. The circuit was found in a 1999 Poptronics.
| Clique na imagem para ampliar |
Voltage Alarm (CB14980E)
- Details
- Written by: Newton C. Braga
