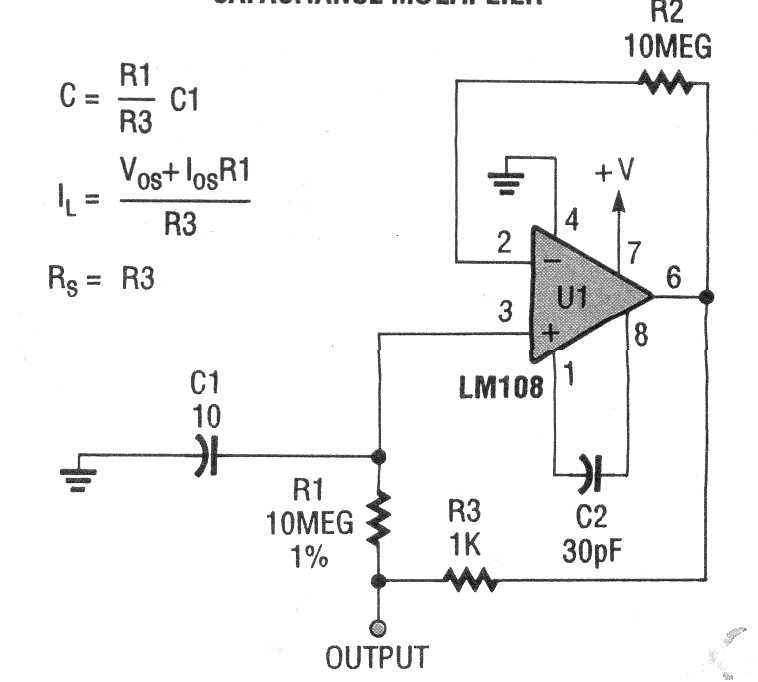

This circuit behaves like a capacitor whose value is C1 multiplied by the relationship between R1 and R3. The circuit is from American documentation from the 90s and does not require symmetrical power. The operational amplifier admits equivalent.
