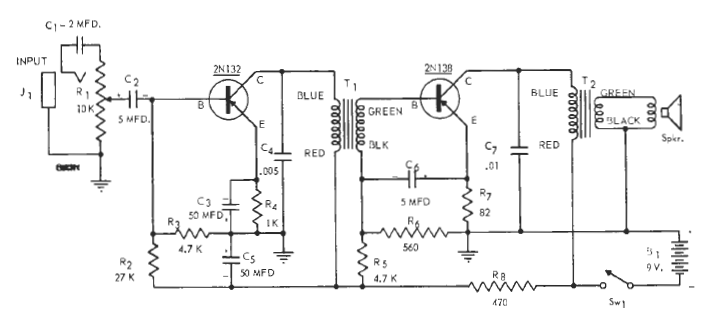

This amplifier was found in a 1957 Rayrtheon documentation. The circuit can be fitted with a BC558 transistor. Driver and output transformers can be obtained from unused transistor radios.
| Clique na imagem para ampliar |
Small Audio Amplifier (CB14736E)
- Details
- Written by: Newton C. Braga
