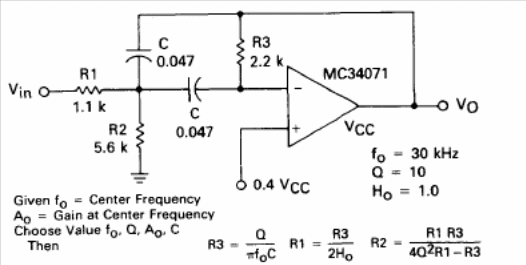

The circuit is suggested by Motorola in its 1990 Linear Databook but operating from the same family and with the same characteristics can be used. Formulas for calculating components for other frequencies are given next to the diagram.
1 kHz Pass Band Filter MC34071 (CB14478E)
- Details
- Written by: Newton C. Braga
