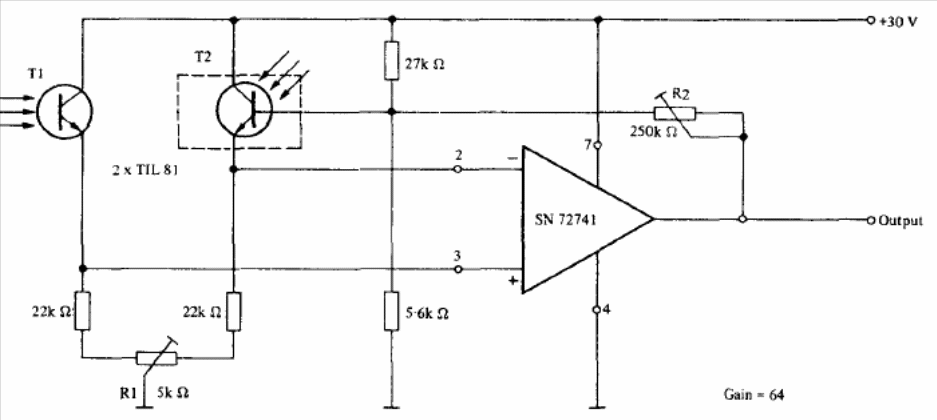

The circuit shown in the figure has temperature compensation. Phototransistors can be of any type and other operational ones can be used. We found this configuration in a Texas Instruments opto-electronics manual.
| Clique na imagem para ampliar |
Phototransistor Compensation 741 (CB14656E)
