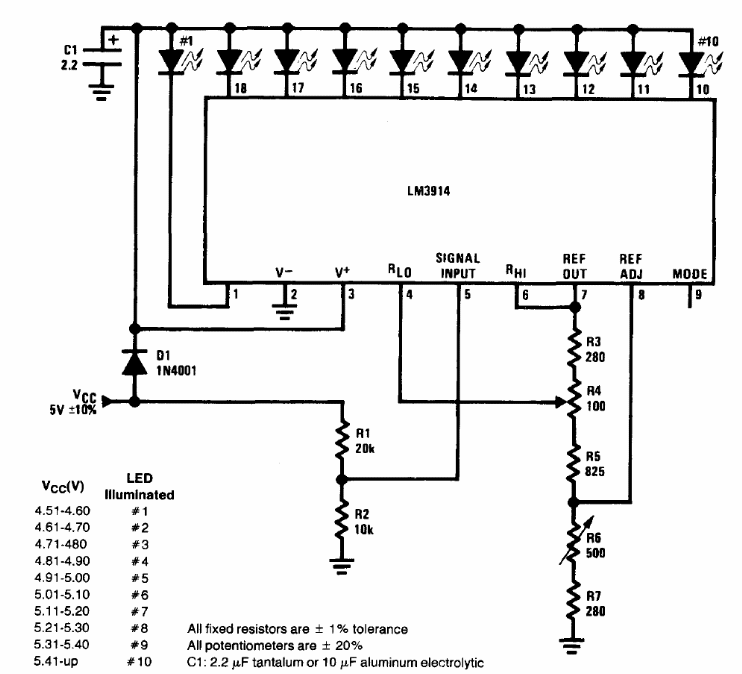

Bargraph TTL voltmeter LM3914 (CB14430E)

This circuit accurately monitors a 5 V TTL source. The circuit is from National Semiconductor's Linear Applications Handbook.

| Clique na imagem para ampliar |
