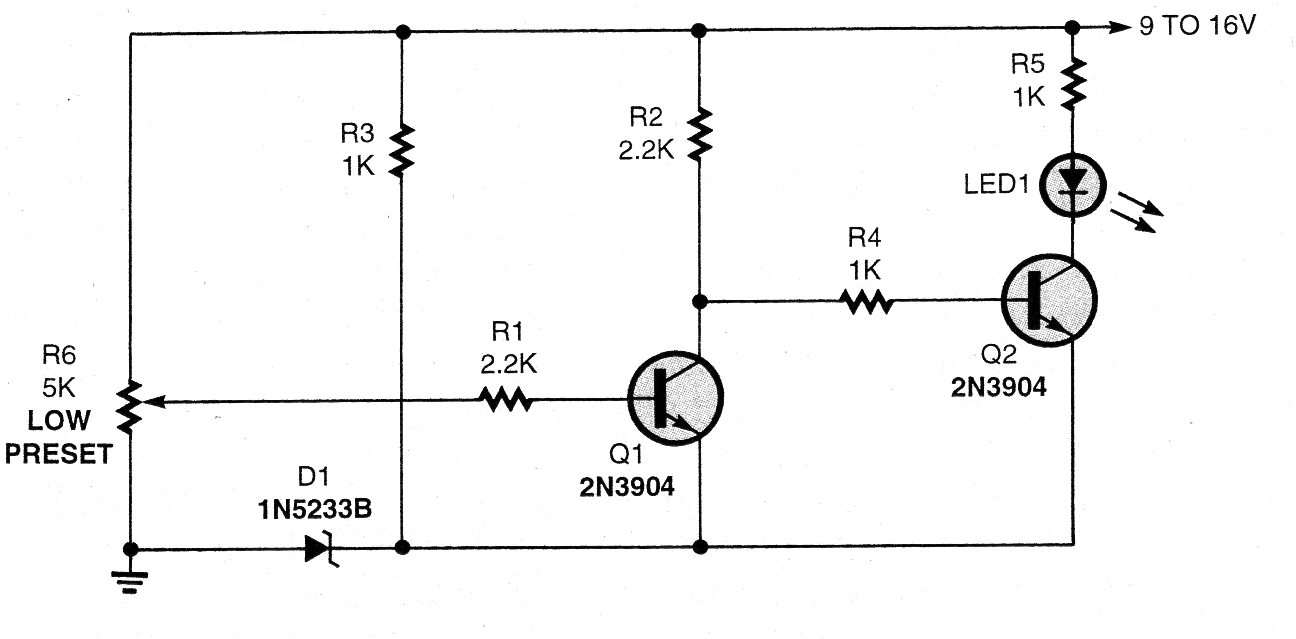

In this circuit the LED lights up when the voltage drops below the value set in the trimpot. The transistors can be the BC548. The circuit is from a 1999 American publication.
| Clique na imagem para ampliar |
Low Voltage Indicator (CB14979E)
