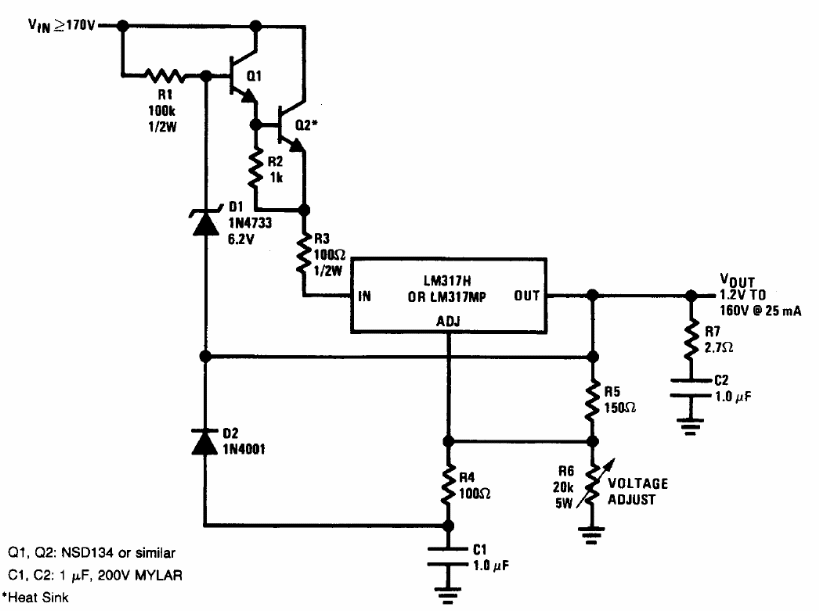

The circuit presented was found in the Linear Applications Handbook of the National Semiconductor of 1994. The components used are rare today, but changes can be made to use more modern components.
| Clique na imagem para ampliar |
High Voltage Regulator (CB14429E)
- Details
- Written by: Newton C. Braga
