Tone Control with the TDA1524A (CB14579E)

Details
Written by: Newton C. Braga

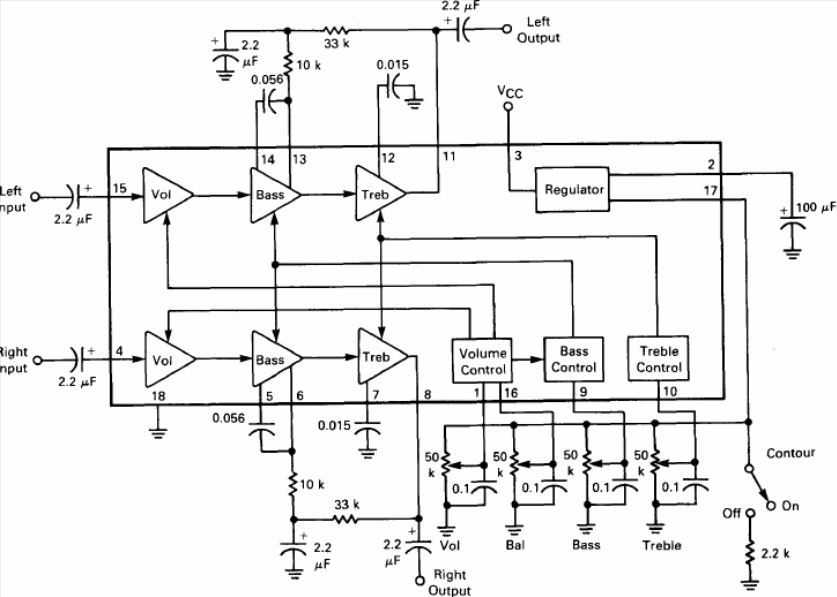

The circuit below was suggested by the Motorola Linear Databook of 1990. The component used is uncommon and the power can be between 7.5 and 12 V.






| Clique na imagem para ampliar |
