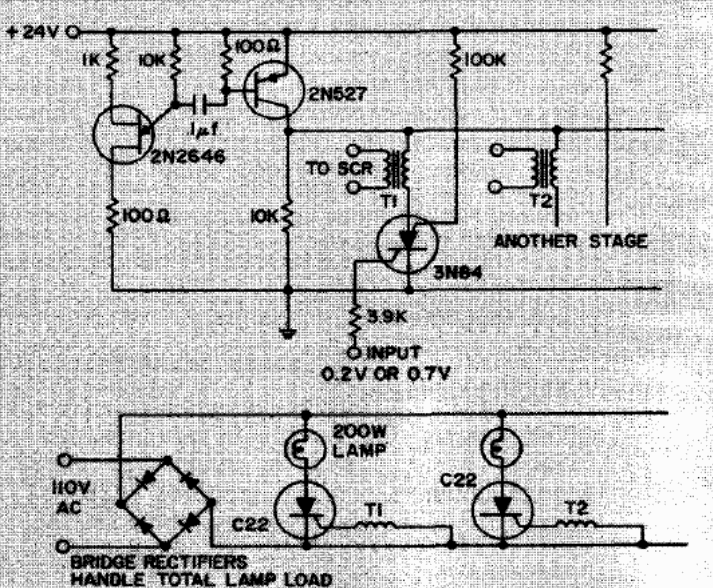

The circuit shown is from the 1977 GE semiconductor manual. The circuit uses a controlled silicon switch and SCRs that can be equivalent. The bipolar transistor can be a BC557. The pulse transformer for triggering SCRs has a 1: 1 turn ratio.
| Clique na imagem para ampliar |
