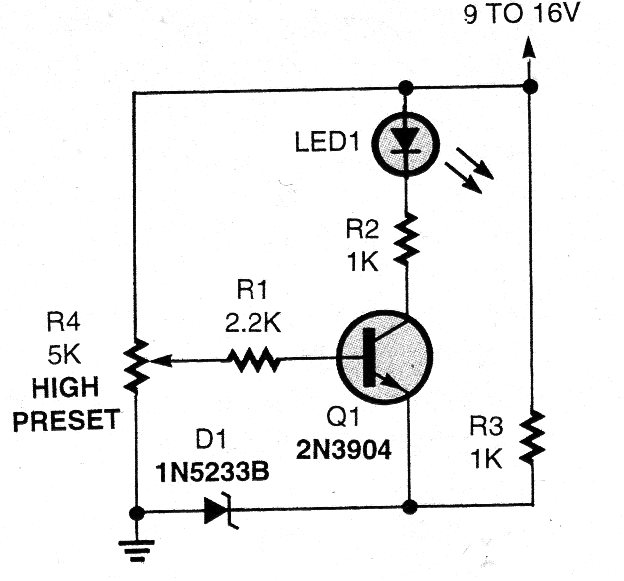

In this circuit the transistor switches when the voltage reaches the pre-set value in the trimpot. The circuit can be used to monitor sources and batteries. We found this configuration in a 1999 documentation.
Simple Voltage Monitor (CB14978E)
- Details
- Written by: Newton C. Braga
