Electronic Relay (CB14743E)

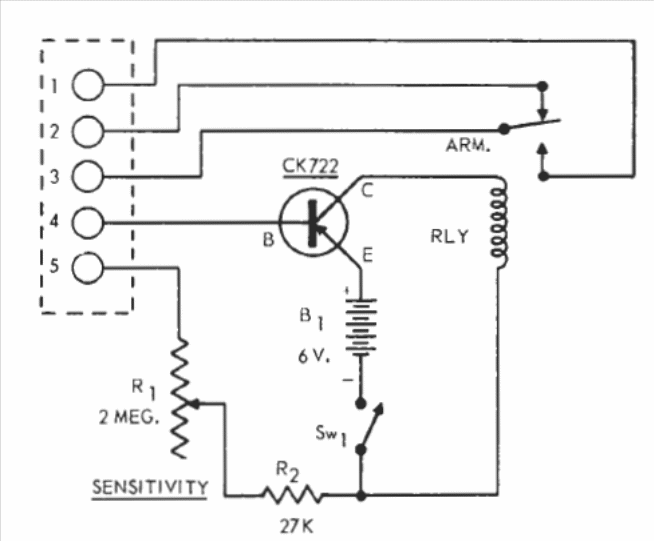

This assembly is from 1957 from a Raytheon manual, but can be modernized using a BC548, 6 V power supply and common 100 mA relays.

| Clique na imagem para ampliar |

Operational Relay Driver (CB11901E)
In the figure we show how to activate a relay from the output of a common operational amplifier when...
Common collector stage (CB22227E)
Found in a publication from the 50's, this circuit uses a germanium transistor of the time. The...
