750 Hz Low Pass Filter (CB14843E)

Details
Written by: Newton C. Braga

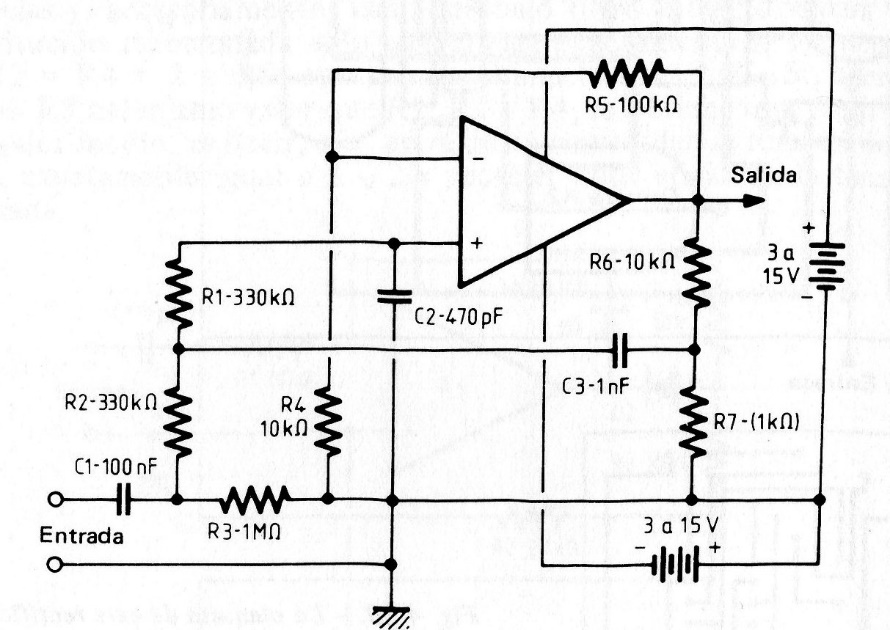

The cut-off frequency of the circuit shown in the figure is 750 Hz, with the components used. The circuit applies to almost any operational amplifier and the power supply must be symmetrical.
