Simple Multimeter (CB14965E)

Details
Written by: Newton C. Braga

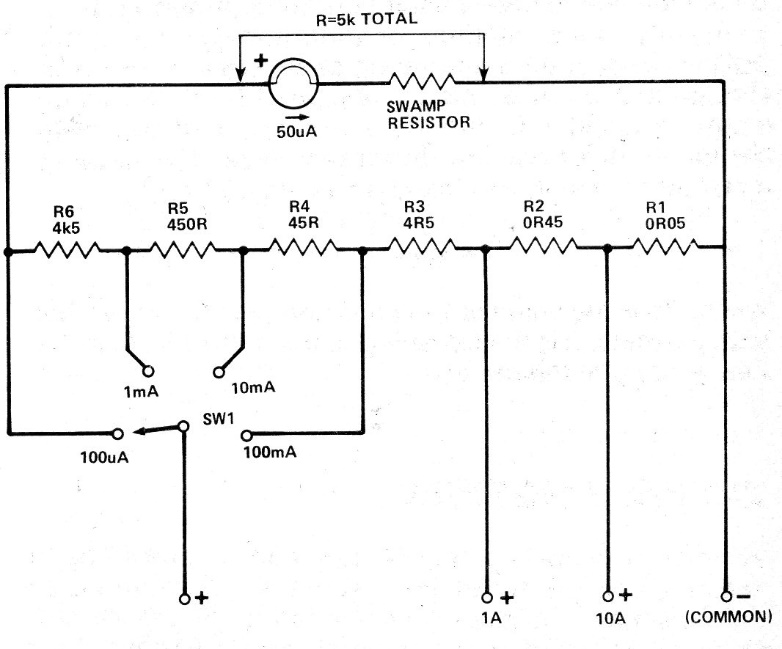

The presented circuit measures currents and voltages with precision that depends on the tolerance of the resistors used. The instrument is a microammeter and more scales can be added.




| Clique na imagem para ampliar |
