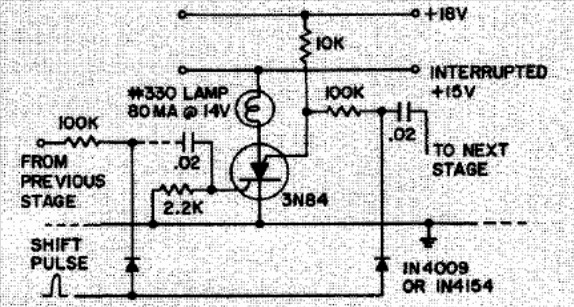

The component used, of the thyristor family, is uncommon, but it is worth knowing the configuration that drives a lamp. The circuit is from the 1977 GE semiconductor manual.
Silicon Controlled Switch in a Shift Register (CB14709E)
- Details
- Written by: Newton C. Braga
