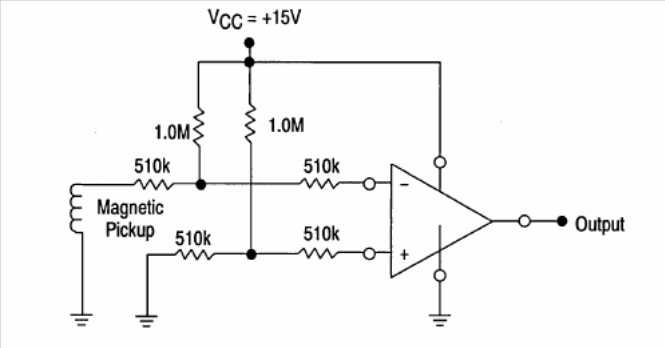

Other amplifiers of the series like the MC3301, MC3401 and LM2900 can be used in this circuit. We found this setting on Motorola's Linear Interface ICs. The circuit uses a magnetic sensor.
| Clique na imagem para ampliar |
Zero Crossing Detector LM3900 (CB15261E)
- Details
- Written by: Newton C. Braga
