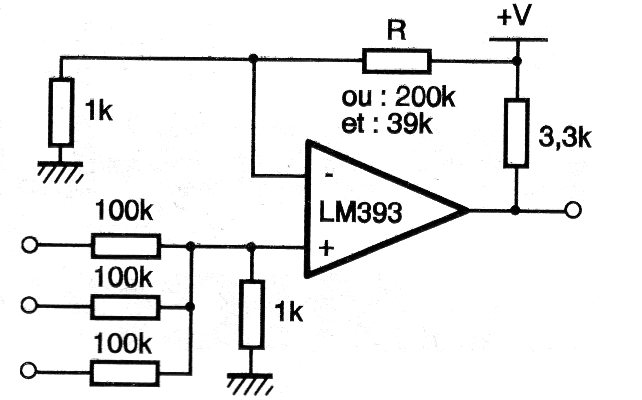

In the figure we have the way to implement a logic gate or (OR) with an LM393. The circuit must be powered by a symmetrical source and other operational ones can be used.
| Clique na imagem para ampliar |
Or Gate Operational (CB15104E)
