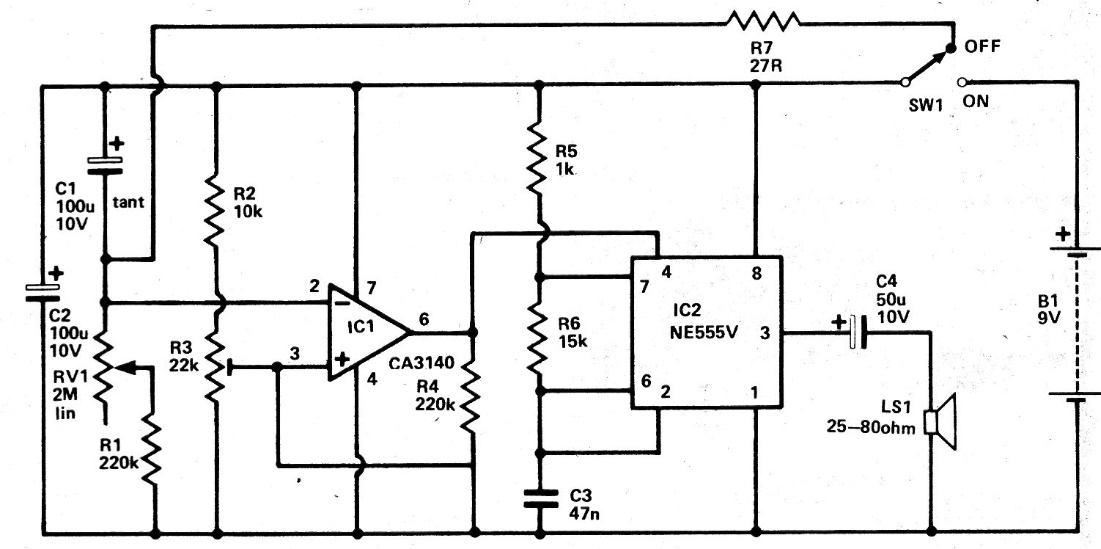

This timer produces a continuous sound at the end of the timer set in potentiometer RV1. The circuit can reach times of several minutes, depending on C1. A loudspeaker is used for this version, but a buzzer can be used without the need for C4. The circuit is from a 1979 English documentation.
