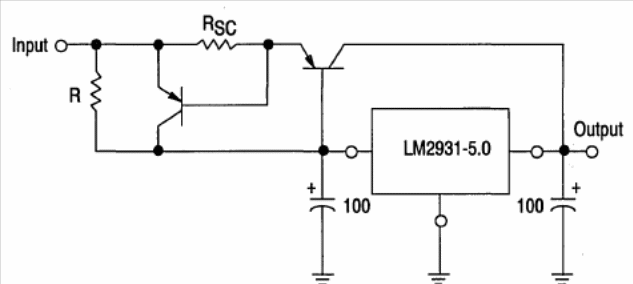

Current Regulator with Protection LM2931 (CB15323E)

Details
Written by: Newton C. Braga



The component values depend on the current, which in this case has a maximum value of 5 A. The transistors must be mounted on heat radiators. The circuit is from the 1993 Motorola Linear Interface ICs.
