Step Down Converter with uA78s40 (CB14538E)

Details
Written by: Newton C. Braga

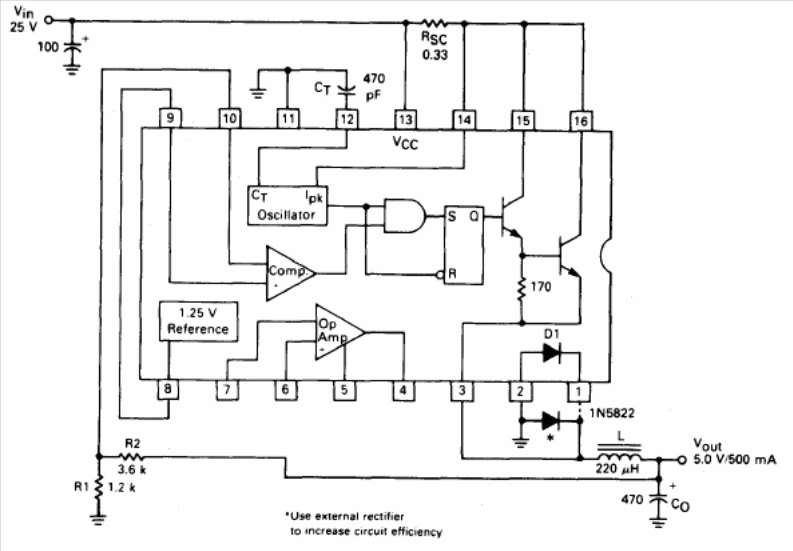

The component used in this circuit is uncommon today, as the circuit was obtained from Motorola's Linear Databook of 1990. The circuit consists of a 5 V x 500 mA switched regulator.
