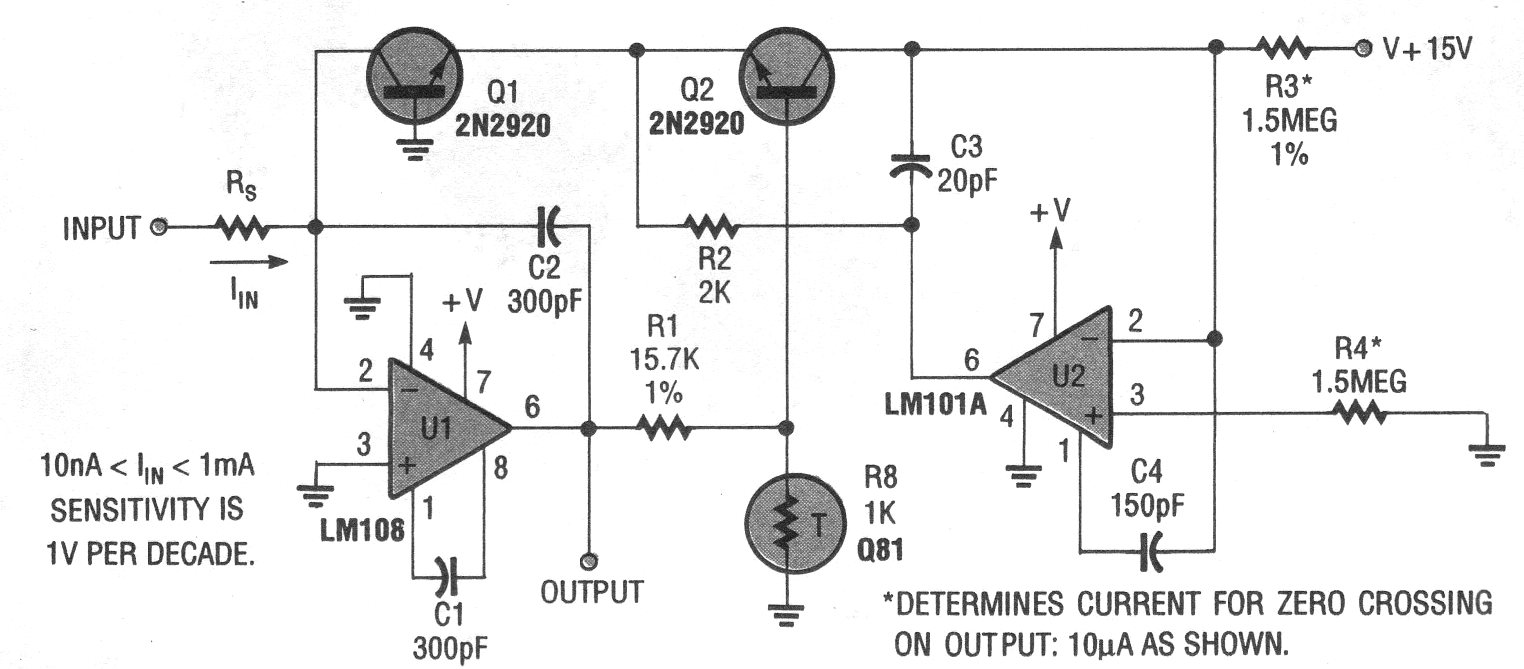

One Quadrant Logarithmic Converter (CB15070E)

Details
Written by: Newton C. Braga



This configuration was found in an American publication from the 90s. Operators admit equivalents just like transistors. The circuit does not require a symmetrical source.
