Telegraphy Practice Oscillator (CB14739E)

Details
Written by: Newton C. Braga

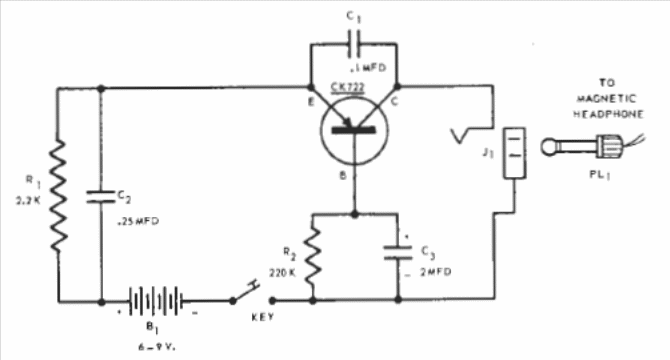

This audio oscillator is from a 1957 Raytheon publication. The tone generated depends on C2 and C2 and the handset must be high-impedance magnetic. Equivalent transistors can be tested.




| Clique na imagem para ampliar |
