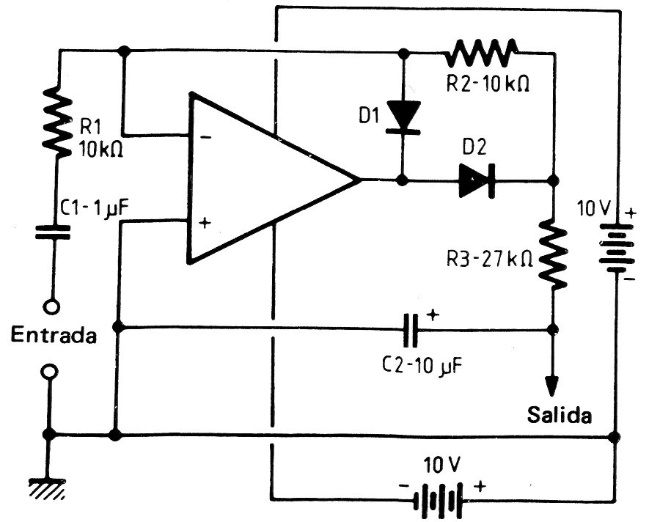

Operational Half Wave Rectifier (CB14840E)

Details
Written by: Newton C. Braga



We found this configuration in documentation from the 1980s. It applies to almost any operational amplifier and in this version requires a symmetrical power supply.
