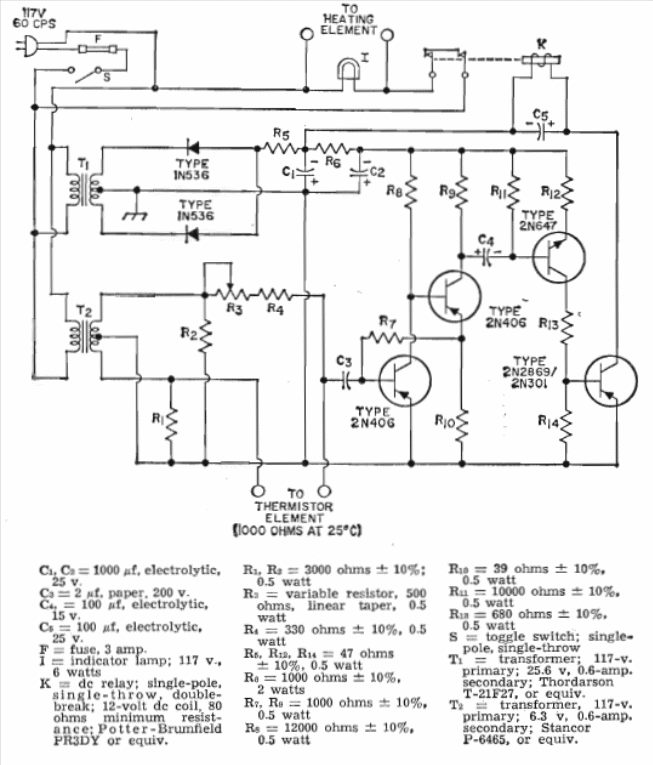

We found this circuit in the 1964 RCA transistors manual. The transistors used are uncommon today, but they can be used equivalent. The circuit controls the operation of a heating element.
| Clique na imagem para ampliar |
Electronic Thermostat (CB14820S)
- Details
- Written by: Newton C. Braga
