Operational LC Os

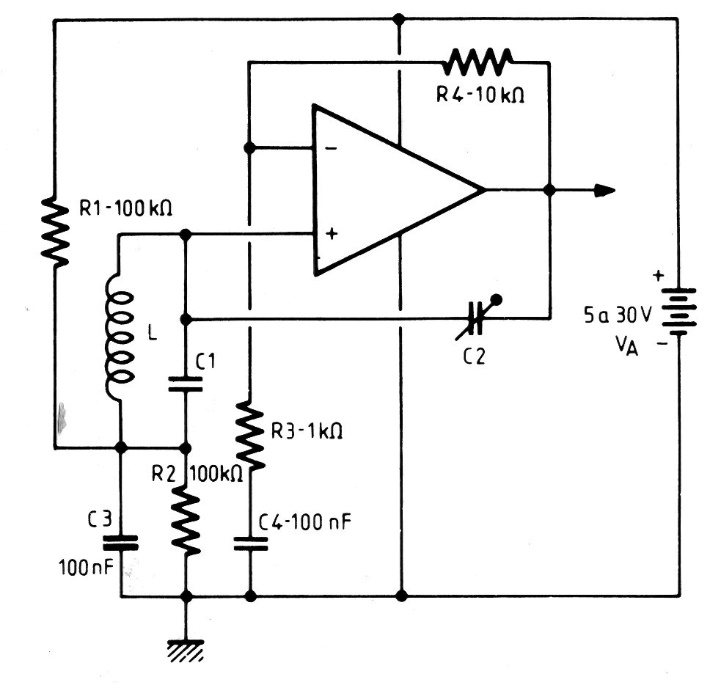

The maximum frequency of this circuit depends on the operational, reaching a few hundred kilohertz. The circuit is from French documentation from 1982 and applies to almost any type of operation. For this version the power supply does not have to be symmetrical. L and C2 determine the frequency.
