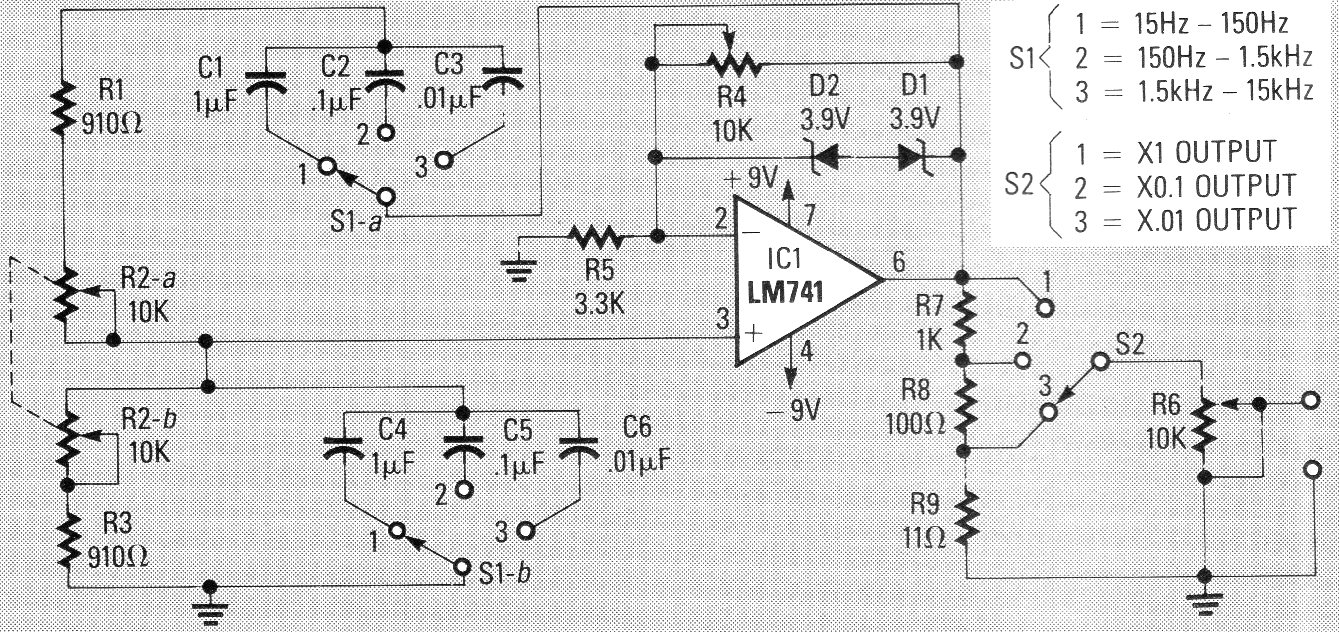

This oscillator can be used as a signal generator in a workshop, generating sinusoidal signals from 15 Hz to 15 kHz in three bands. The circuit is from 1989 Radio Electronics and the power supply must be symmetrical.
| Clique na imagem para ampliar |
