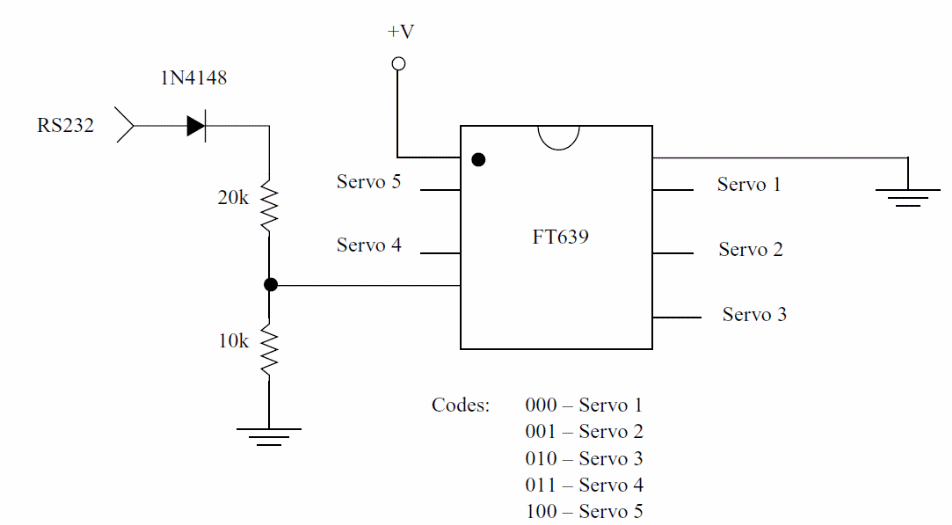

With this circuit, from Newton C. Braga's Mechatronics Sourcebook it is possible to control up to 5 servos from the serial port of a computer. The voltage depends on the servos and the pulse programming is done on the computer or microcontroller.
