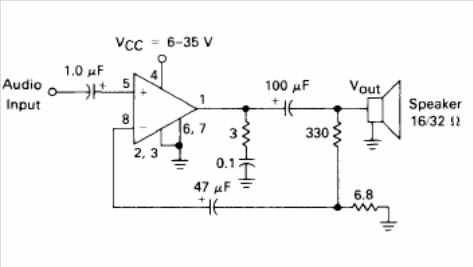

This circuit can work with power voltages from 6 to 35 V, being suggested by the Motorola Linear Databook of 1990. The output power depends on the supply voltage.
2 W amplifier MC13060 (CB14576E)
- Details
- Written by: Newton C. Braga
This circuit can work with power voltages from 6 to 35 V, being suggested by the Motorola Linear Databook of 1990. The output power depends on the supply voltage.
